Brainstem Anatomy & Syndromes
What Do You Need to Know?
- Internal organization of each brainstem level (midbrain, pons, medulla) — ventral-to-dorsal layers and key structures at each cross-section
- Rule of 4s — the single most efficient framework for brainstem localization on boards
- Major tract locations at each level — corticospinal, medial lemniscus, spinothalamic, MLF, sympathetic pathways
- Classic named brainstem stroke syndromes — Weber, Benedikt, Claude, Millard-Gubler, Foville, Wallenberg, medial medullary, locked-in → know artery, structures, and clinical features for each
- "Crossed" findings — ipsilateral CN deficit + contralateral long-tract signs = brainstem
- Brainstem reflexes — tested in coma and brain death examinations
- Key neuro-ophthalmology localizations — INO, one-and-a-half syndrome, Parinaud syndrome, ocular bobbing
🚩 Don’t Miss — Test-Day Priorities
- Rule of 4s — Medial 4 M’s: Motor (CST) + Medial lemniscus + MLF + Motor CN nuclei (III, IV, VI, XII) → supplied by paramedian perforators; lesion = contralateral hemiparesis + contralateral lemniscal loss + INO + ipsilateral CN palsy
- Rule of 4s — Lateral 4 S’s: Spinothalamic + Spinal trigeminal + Sympathetic + Spinocerebellar → supplied by circumferential arteries (PICA, AICA, SCA); lesion = contralateral body pain/temp + ipsilateral face pain/temp + ipsilateral Horner + ipsilateral ataxia
- Crossed findings = brainstem: ipsilateral CN deficit + contralateral long-tract sign localizes to brainstem at the level of the CN nucleus
- CN IV is the odd one: only CN that exits DORSALLY and supplies the CONTRALATERAL superior oblique — trochlear nerve palsy → vertical diplopia worse on downgaze, head tilt away from lesion
- Wallenberg (lateral medullary, PICA/vertebral): ipsi face pain/temp loss + ipsi Horner + ipsi ataxia + hoarseness/dysphagia (nucleus ambiguus) + vertigo/nystagmus + CONTRA body pain/temp; NO weakness, NO tongue involvement
- Medial medullary (Dejerine, anterior spinal): contra hemiparesis + contra lemniscal loss + IPSI tongue deviation (CN XII)
- Weber vs Claude vs Benedikt: all have ipsi CN III; Weber adds contra hemiparesis (crus), Claude adds contra ataxia (red nucleus), Benedikt = ipsi CN III + contra hemiparesis + contra ataxia (combined)
- Millard-Gubler vs Foville: both ventral pons with ipsi CN VI + CN VII LMN + contra hemiparesis; Foville adds ipsi horizontal gaze palsy (PPRF)
- Locked-in syndrome: ventral pons (basilar) → quadriplegia + anarthria with PRESERVED consciousness; only vertical eye movements + blinking spared
- INO (MLF lesion): impaired ADDuction of ipsilateral eye + abducting nystagmus of contralateral eye + PRESERVED convergence; bilateral → MS in young, unilateral → vascular in elderly
- One-and-a-half syndrome: paramedian pontine lesion of PPRF/CN VI nucleus + MLF → ipsi horizontal gaze palsy + ipsi INO; only contralateral abduction preserved
- Parinaud (dorsal midbrain) syndrome: upgaze palsy + convergence-retraction nystagmus + light-near dissociation + Collier sign (lid retraction); think pineal germinoma in young, aqueductal stenosis, midbrain stroke
- Gaze deviation rule: cortical (frontal eye field) lesion → eyes deviate TOWARD lesion; pontine destructive lesion → eyes deviate AWAY from lesion; seizure → eyes deviate AWAY from epileptic focus
- DCML vs spinothalamic crossing: medial lemniscus crosses in CAUDAL MEDULLA (internal arcuate fibers); spinothalamic crosses at SPINAL CORD level near entry; corticospinal crosses at PYRAMIDAL DECUSSATION (cervicomedullary junction, 85-90%)
- Top-of-basilar syndrome: embolic occlusion → bilateral PCA + thalami + midbrain → visual, behavioral, oculomotor findings; classic combo of cortical blindness + memory loss + vertical gaze palsy
- AICA vs PICA vs SCA: AICA = lateral pons + ipsi CN VII LMN + ipsi hearing loss/vertigo (labyrinthine artery); PICA = Wallenberg + cerebellar dysmetria; SCA = superior cerebellum + ipsi ataxia + ipsi Horner
🔍 Buzzwords & Pathognomonic FindingsAnatomy / CN nuclei · Tract / function · Stroke syndromes
Anatomy / CN nuclei
- Edinger-Westphal nucleus → CN III parasympathetic → pupillary constriction + accommodation (midbrain, near aqueduct)
- Trochlear nucleus (CN IV) → only CN exiting DORSALLY + crossing to supply CONTRALATERAL superior oblique (caudal midbrain at inferior colliculus)
- Substantia nigra pars compacta → dopaminergic nigrostriatal pathway → Parkinson disease when depleted (midbrain)
- Red nucleus → rubrospinal tract + cerebellar relay → Claude/Benedikt syndromes when infarcted (midbrain tegmentum)
- Periaqueductal gray (PAG) → endogenous opioid analgesia + autonomic + vocalization (surrounds cerebral aqueduct)
- Superior colliculus → visual reflexes + saccade generation (rostral midbrain tectum)
- Inferior colliculus → auditory relay → MGN → primary auditory cortex (caudal midbrain tectum)
- Pretectum + Edinger-Westphal → pupillary light reflex afferent + efferent loop (midbrain)
- Rostral interstitial nucleus of MLF (riMLF) + interstitial nucleus of Cajal → vertical gaze center (rostral midbrain)
- Abducens nucleus (CN VI) + genu of facial nerve → facial colliculus on floor of 4th ventricle (caudal pons)
- PPRF (paramedian pontine reticular formation) → horizontal gaze center → ipsilateral conjugate gaze (pons, near CN VI nucleus)
- Locus coeruleus → norepinephrine source for cortex + arousal (dorsal rostral pons)
- Raphe nuclei → serotonin source → mood + sleep + analgesia (midline brainstem)
- Nucleus tractus solitarius (NTS) → visceral afferents + taste from CN VII/IX/X (anterior 2/3 via geniculate, posterior 1/3 via CN IX) (medulla)
- Nucleus ambiguus → motor to palate/pharynx/larynx via CN IX, X, XI → hoarseness, dysphagia in Wallenberg (lateral medulla)
- Dorsal motor nucleus of vagus → parasympathetic to thoracoabdominal viscera (medulla)
- Hypoglossal nucleus (CN XII) → tongue motor → deviates TOWARD side of lesion (medial medulla, near midline)
- Inferior olivary nucleus → climbing fibers to contralateral cerebellum → hypertrophic olivary degeneration + palatal myoclonus (medulla)
Tract / function
- Corticospinal tract (pyramids) → descending voluntary motor → crosses at pyramidal decussation (cervicomedullary junction)
- Medial lemniscus (DCML) → fine touch + vibration + proprioception → crosses in CAUDAL MEDULLA as internal arcuate fibers
- Spinothalamic tract → pain + temperature + crude touch → crosses at SPINAL CORD level near entry (anterior white commissure)
- Spinal trigeminal nucleus + tract → IPSILATERAL face pain/temperature → extends from pons through medulla to upper cervical cord
- Medial longitudinal fasciculus (MLF) → connects CN VI nucleus to contralateral CN III → conjugate horizontal gaze; lesion = INO
- Rubrospinal tract → red nucleus → flexor tone in upper extremities (decorticate posturing if lesion rostral to red nucleus)
- Sympathetic descending fibers → ipsilateral Horner syndrome (miosis, ptosis, anhidrosis) when interrupted in lateral brainstem
- Middle cerebellar peduncle → pontine nuclei → contralateral cerebellum (cortico-ponto-cerebellar circuit)
- Olivocerebellar tract → inferior olive → contralateral cerebellum via inferior cerebellar peduncle (climbing fibers)
Brainstem stroke syndromes
- Wallenberg (lateral medullary) → PICA/vertebral → ipsi face pain/temp + ipsi Horner + ipsi ataxia + hoarseness/dysphagia + vertigo/nystagmus + CONTRA body pain/temp; no weakness
- Dejerine (medial medullary) → anterior spinal artery → contra hemiparesis + contra lemniscal loss + IPSI tongue deviation (CN XII)
- Weber syndrome → medial midbrain (PCA paramedian) → ipsi CN III + contra hemiparesis (crus cerebri)
- Claude syndrome → midbrain tegmentum → ipsi CN III + contra ataxia (red nucleus/SCP)
- Benedikt syndrome → midbrain → ipsi CN III + contra hemiparesis + contra ataxia + involuntary movements
- Millard-Gubler syndrome → ventral pons → ipsi CN VI + ipsi CN VII LMN + contra hemiparesis
- Foville syndrome → caudal pons → ipsi CN VI + ipsi CN VII LMN + ipsi horizontal gaze palsy (PPRF) + contra hemiparesis
- Locked-in syndrome → ventral pons (basilar) → quadriplegia + anarthria + PRESERVED consciousness; only vertical eye/blink spared
- Top-of-basilar syndrome → embolic → bilateral PCA + thalami + rostral midbrain → cortical blindness + memory loss + vertical gaze palsy + behavioral changes
- AICA syndrome → lateral pons + labyrinthine → ipsi CN VII LMN + ipsi hearing loss/vertigo + ipsi face sensory loss + contra body pain/temp
- SCA syndrome → superior cerebellum + rostral lateral pons → ipsi ataxia + ipsi Horner ± contra body pain/temp
- One-and-a-half syndrome → paramedian pontine PPRF + MLF lesion → ipsi horizontal gaze palsy + ipsi INO; only contralateral eye abduction preserved
- Parinaud (dorsal midbrain) syndrome → pineal mass/germinoma in young, aqueductal stenosis, midbrain stroke → upgaze palsy + convergence-retraction nystagmus + light-near dissociation + Collier sign
Brainstem Overview
General Organization

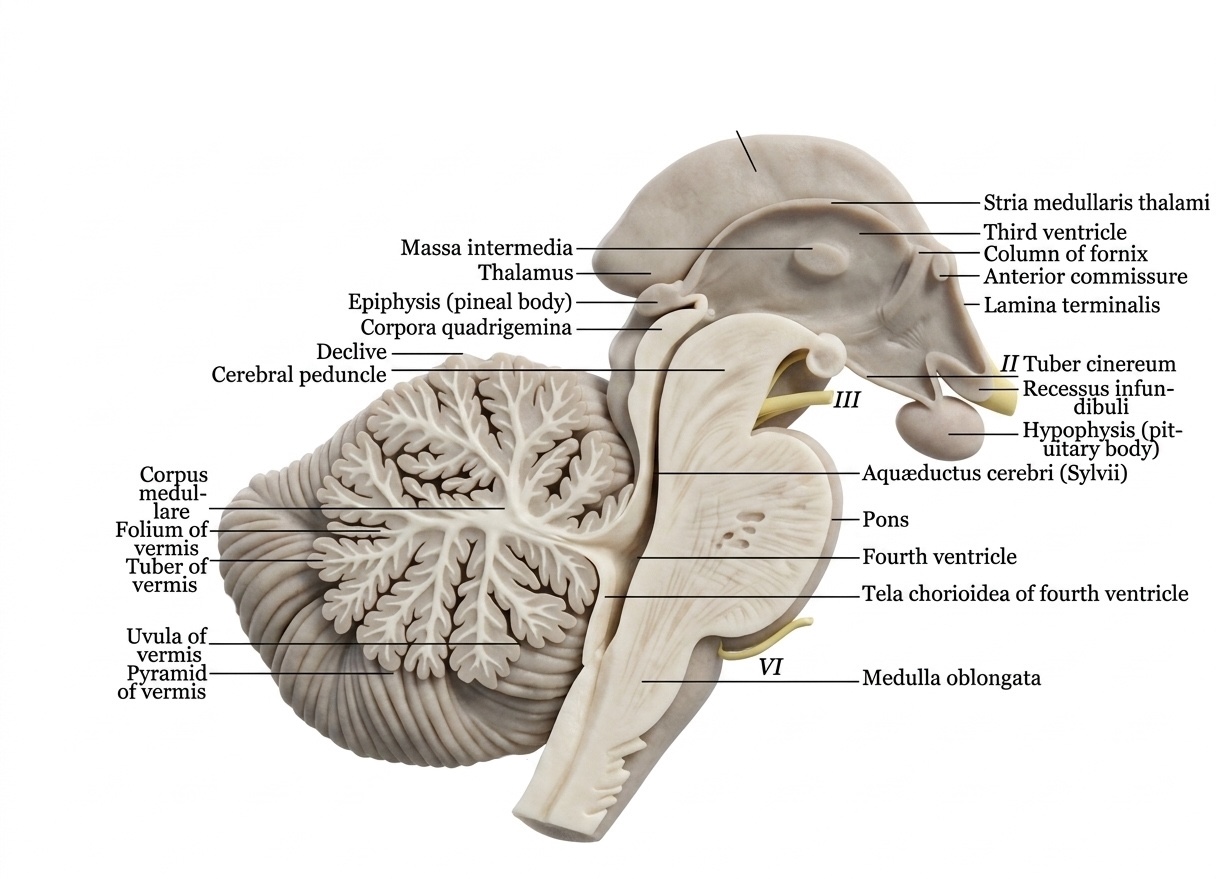

- Location: Between diencephalon (above) and spinal cord (below), anterior to the cerebellum
- Three divisions (rostral → caudal):
- Midbrain (mesencephalon) — superior & inferior colliculi
- Pons (metencephalon) — ventral bulge with middle cerebellar peduncles
- Medulla oblongata (myelencephalon) — pyramids and olives
- Ventricular association: cerebral aqueduct (midbrain) → 4th ventricle (pons/medulla) → central canal (caudal medulla/cord)
Internal Organization (Ventral → Dorsal)
| Layer | Contents | Function |
|---|---|---|
| Basis (ventral) | Corticospinal, corticobulbar, corticopontine tracts | Descending motor output |
| Tegmentum (middle) | CN nuclei, ascending sensory tracts, reticular formation, autonomic centers | Sensory relay, CN functions, arousal, autonomics |
| Tectum (dorsal) | Colliculi (midbrain); roof of 4th ventricle (pons/medulla) | Visual/auditory reflexes (midbrain only) |
The Rule of 4s
- 4 structures in the Midline (Medial) — the "4 M's":
- Motor pathway (corticospinal tract) → contralateral hemiparesis
- Medial lemniscus → contralateral proprioception/vibration loss
- Medial longitudinal fasciculus (MLF) → INO
- Motor nucleus/nerve of CN (III, IV, VI, XII — all near midline)
- 4 structures in the Side (Lateral) — the "4 S's":
- Spinothalamic tract → contralateral pain/temperature loss (body)
- Spinal trigeminal nucleus/tract → ipsilateral pain/temperature loss (face)
- Sympathetic fibers → ipsilateral Horner syndrome
- Spinocerebellar pathways/cerebellar peduncles → ipsilateral ataxia
Board Pearl
Medial = Motor (4 M's). Lateral = Sensory + Spinocerebellar (4 S's). Paramedian branches supply medial structures; circumferential branches (PICA, AICA, SCA) supply lateral structures. This single framework answers most brainstem localization questions on boards.
Blood Supply Overview
| Level | Medial Supply | Lateral Supply |
|---|---|---|
| Midbrain | Basilar tip, PCA (paramedian perforators) | SCA, PCA (circumferential branches) |
| Pons | Basilar artery (paramedian branches) | AICA, SCA (short/long circumferential branches) |
| Medulla | Vertebral artery, anterior spinal artery | PICA, vertebral artery |

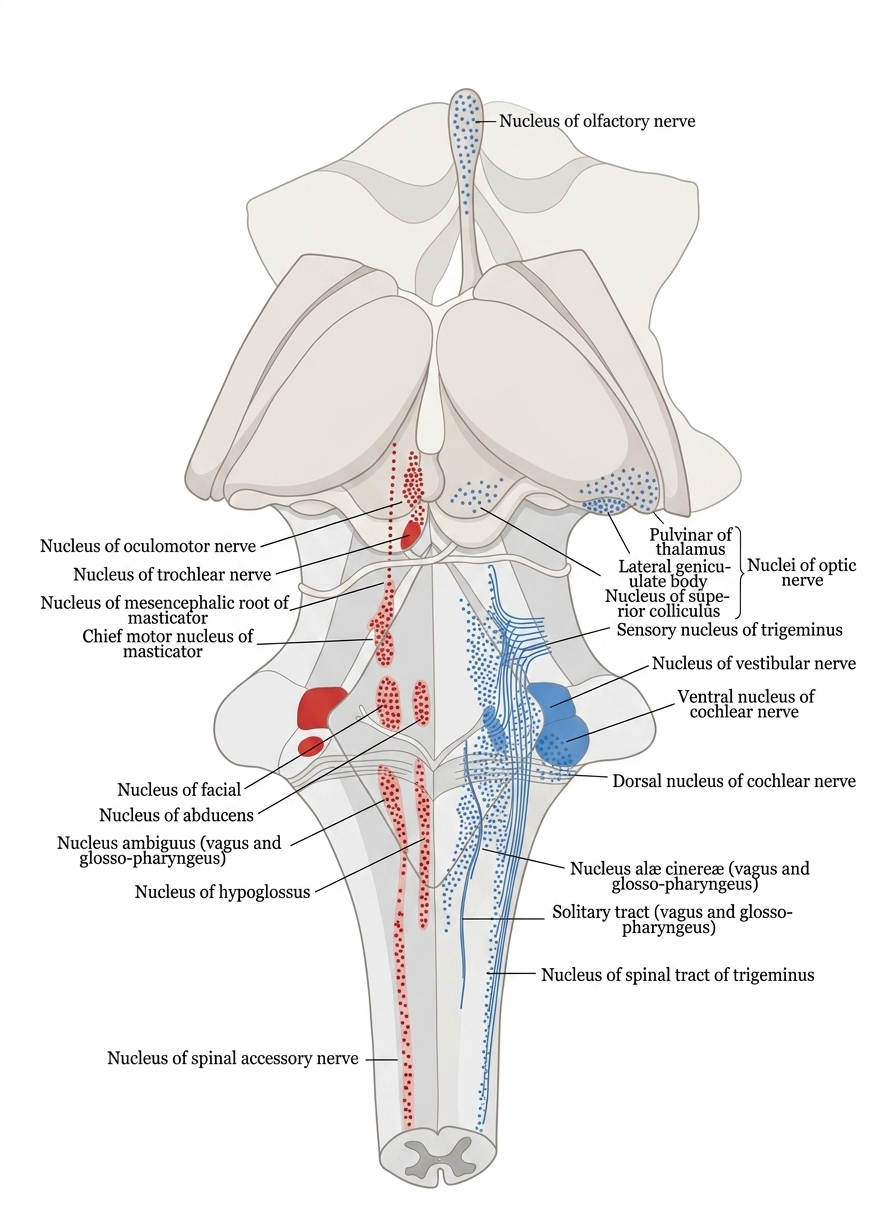

Cranial Nerve Nuclei — Medial-to-Lateral Organization
- Somatic motor (most medial) — near midline floor of ventricle
- Visceral motor (parasympathetic)
- Visceral sensory
- Somatic/special sensory (most lateral)
- Mnemonic: "Motor is Medial" — embryology: basal plate (motor) is ventromedial, alar plate (sensory) is dorsolateral
Midbrain (Mesencephalon)
Gross Anatomy & Key Landmarks
- Extends from pons (below) to diencephalon (above)

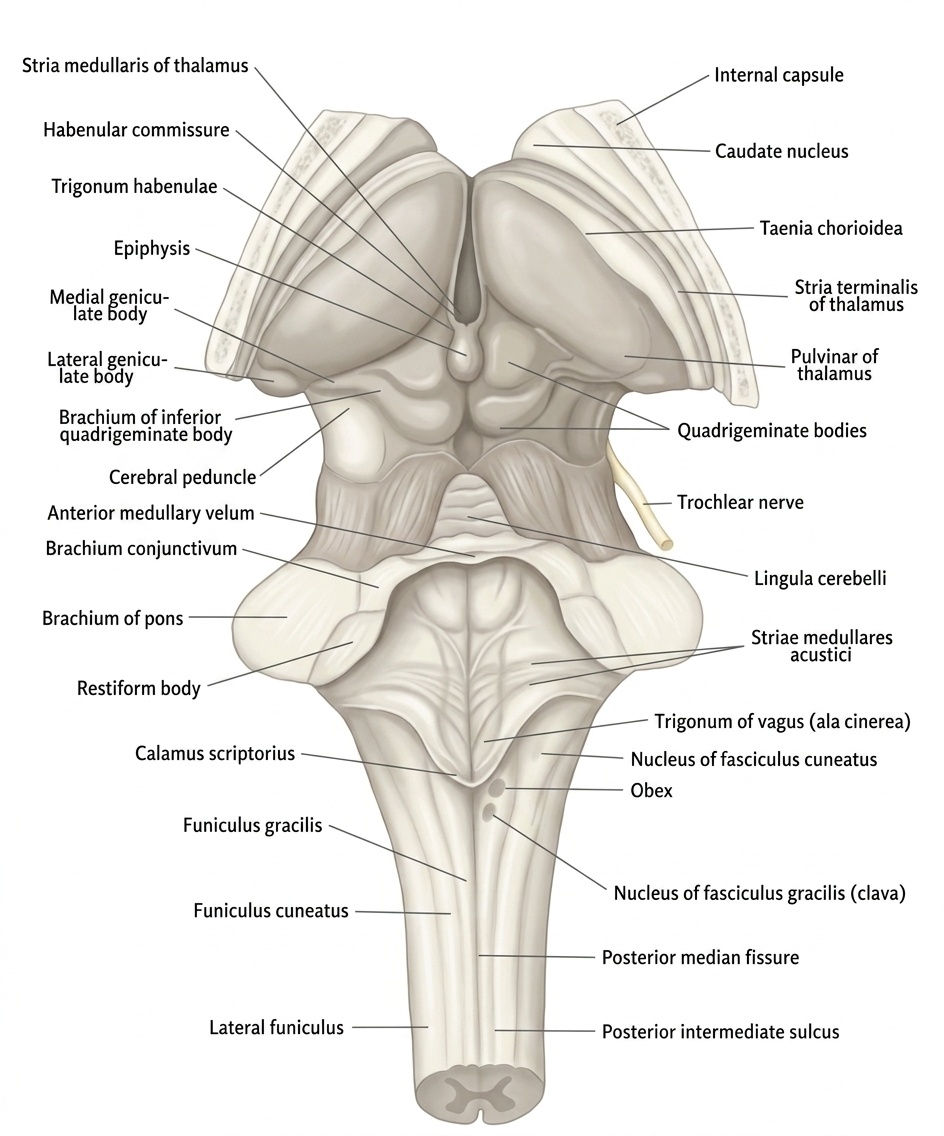

- Dorsal landmarks: superior and inferior colliculi (the tectum / quadrigeminal plate)

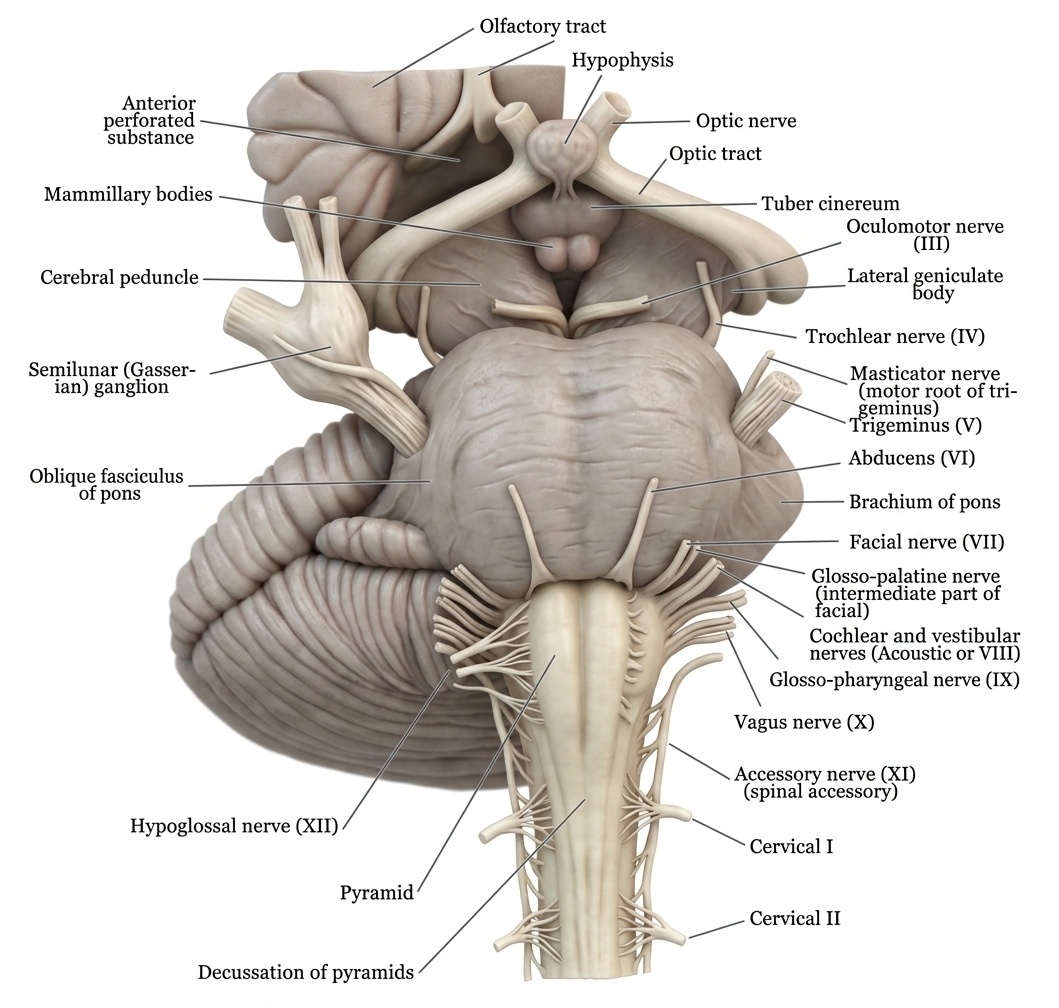

- Ventral landmarks: cerebral peduncles, interpeduncular fossa (CN III exits here)
- CSF pathway: cerebral aqueduct (of Sylvius) runs through the midbrain → aqueductal stenosis causes obstructive hydrocephalus
Key Internal Structures
| Structure | Location | Function | Clinical Correlation |
|---|---|---|---|
| Cerebral peduncle | Ventral (basis) | Corticospinal (middle 3/5), corticobulbar, corticopontine tracts | Weber syndrome → contralateral hemiparesis |
| Substantia nigra | Between peduncle and tegmentum | Pars compacta: dopaminergic neurons → striatum | Parkinson disease (dopamine cell loss) |
| Red nucleus | Tegmentum (central) | Motor coordination; receives dentatorubral (cerebellar) input | Benedikt syndrome → contralateral tremor/ataxia |
| Periaqueductal gray (PAG) | Surrounding aqueduct | Pain modulation (descending inhibition), autonomic control | DBS target for chronic pain |
| MLF | Paramedian tegmentum (dorsal) | Connects CN VI nucleus → contralateral CN III for conjugate gaze | INO (internuclear ophthalmoplegia) |
| Superior colliculus | Dorsal tectum (upper) | Visual reflexes, saccade generation | Parinaud syndrome (with pretectal area) |
| Inferior colliculus | Dorsal tectum (lower) | Auditory relay station | CN IV nucleus located at this level |
| CN III nucleus | Ventral to aqueduct at superior colliculus level | SR, IR, MR, IO, levator palpebrae (SR subnucleus crosses → contralateral SR; central caudal nucleus → bilateral levator palpebrae — nuclear CN III lesion produces bilateral ptosis + contralateral SR weakness) | Weber/Benedikt/Claude syndromes |
| Edinger-Westphal nucleus | Dorsal to CN III motor nucleus | Parasympathetic → pupillary constriction, accommodation | Pupil-involving CN III palsy → think compression (aneurysm) |
| CN IV nucleus | Inferior colliculus level | Superior oblique (depression in adduction, intorsion) | Only CN to exit dorsally and decussate |
Board Pearl
CN IV is unique in 3 ways: (1) only CN that exits dorsally, (2) only CN that fully decussates, (3) longest intradural/cisternal course → vulnerable to trauma. (Note: CN VI has the longest subarachnoid course → classic false-localizing sign with raised intracranial pressure.) Its nucleus is at the inferior colliculus level.
Midbrain Cross-Section — Superior Colliculus Level
Ventral to Dorsal
- Cerebral peduncle (corticospinal, corticobulbar, corticopontine fibers)
- Substantia nigra (pars compacta + reticulata)
- Red nucleus
- Medial lemniscus (lateral to red nucleus at this level)
- Spinothalamic tract (lateral tegmentum)
- CN III nucleus + Edinger-Westphal nucleus
- MLF (paramedian, dorsal)
- Periaqueductal gray → cerebral aqueduct
- Superior colliculus (tectum)

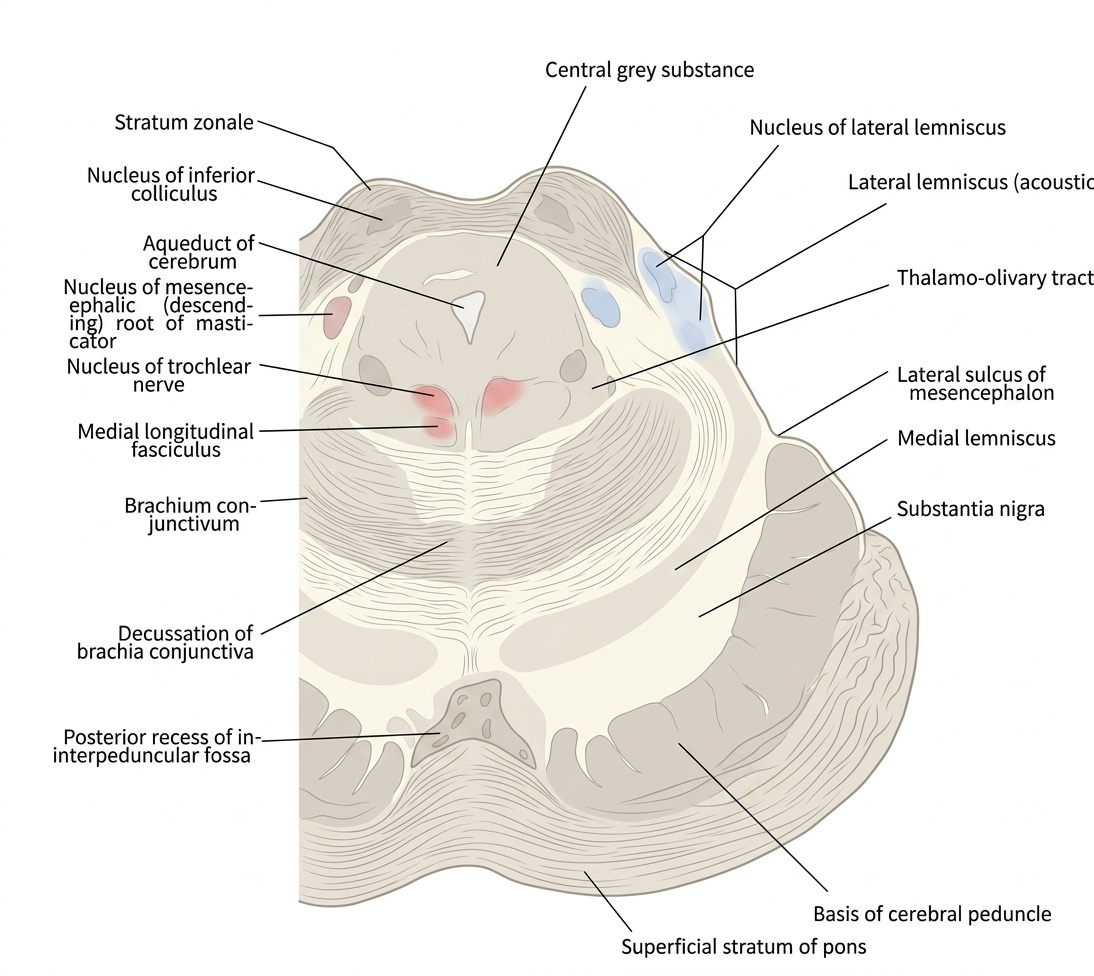

Midbrain Cross-Section — Inferior Colliculus Level
- Cerebral peduncle
- Substantia nigra
- Decussation of superior cerebellar peduncles (SCP)
- CN IV nucleus
- MLF
- Lateral lemniscus (auditory pathway → inferior colliculus)
- Inferior colliculus (tectum)
Pons
Gross Anatomy & Key Landmarks
- Ventral bulge (basis pontis) — contains pontine nuclei + corticospinal fibers + pontocerebellar fibers
- Middle cerebellar peduncle (MCP) — largest peduncle; carries pontocerebellar (afferent) fibers only
- Cerebellopontine angle (CPA) — CN VII and VIII exit here; vestibular schwannoma (acoustic neuroma) site
- 4th ventricle floor — formed by dorsal pons and medulla; facial colliculus is a landmark bump (CN VII fibers looping over CN VI nucleus)
Key Internal Structures
| Structure | Location | Function | Clinical Correlation |
|---|---|---|---|
| CN V nuclei | Mid-pons (motor + chief sensory); spinal nucleus extends into medulla; mesencephalic extends into midbrain | Facial sensation (all 3 divisions), mastication | Trigeminal neuralgia; corneal reflex (afferent limb) |
| CN VI nucleus | Floor of 4th ventricle (facial colliculus) | Lateral rectus → abduction | Foville/Millard-Gubler syndromes; false localizing sign with raised intracranial pressure |
| CN VII nucleus | Lower pons; fibers loop around CN VI nucleus | Facial expression, taste (anterior 2/3), lacrimation, salivation | LMN facial palsy (entire hemiface); Millard-Gubler syndrome |
| CN VIII nuclei | Pontomedullary junction (cochlear + vestibular) | Hearing, balance | AICA syndrome → hearing loss + vertigo |
| PPRF | Paramedian pontine tegmentum near CN VI nucleus | Horizontal gaze center → commands ipsilateral gaze | Lesion → ipsilateral conjugate gaze palsy (eyes deviate away from lesion) |
| Locus coeruleus | Upper pontine tegmentum (floor of 4th ventricle) | Norepinephrine production → arousal, attention, stress response | Implicated in anxiety, PTSD, depression |
| Raphe nuclei | Midline tegmentum | Serotonin production → mood, sleep-wake regulation | Target of SSRIs; involved in REM sleep regulation |
| Superior olivary nucleus | Tegmentum | Sound localization (bilateral auditory processing) | Ascending auditory relay |
Board Pearl
Facial colliculus = bump on the floor of the 4th ventricle formed by CN VII fibers looping over CN VI nucleus. A lesion here causes ipsilateral CN VI + CN VII palsy together. This is a classic boards localization question.
Brainstem Auditory Evoked Response (BAER) — Wave-to-Level Mapping
| Wave | Generator | Level |
|---|---|---|
| I | Distal CN VIII (cochlear nerve) | Peripheral / cerebellopontine angle |
| II | Proximal CN VIII / cochlear nucleus | Pontomedullary junction |
| III | Superior olivary nucleus | Caudal pons |
| IV | Lateral lemniscus | Pons |
| V | Inferior colliculus | Midbrain |
Board Pearl
BAER tests the brainstem only. Waves I–V are generated below the level of the cortex, so BAER is preserved in cortical lesions and cortical deafness. Useful in coma prognostication, posterior fossa tumor monitoring, and confirming brainstem integrity in suspected non-organic hearing loss.
Pontine Cross-Section — Upper Pons (CN V Level)
Ventral to Dorsal
- Basilar pons — pontine nuclei, scattered corticospinal fibers, corticopontine fibers
- Medial lemniscus (now oriented horizontally in the tegmentum)
- Spinothalamic tract (lateral tegmentum)
- CN V motor + chief sensory nuclei
- Superior cerebellar peduncle (SCP)
- 4th ventricle
Pontine Cross-Section — Lower Pons (CN VI/VII Level)
- Basilar pons
- Medial lemniscus
- CN VI nucleus (at facial colliculus) — PPRF nearby
- CN VII nucleus (fibers loop around CN VI)
- MLF (paramedian)
- Spinal trigeminal tract and nucleus
- Spinothalamic tract (lateral)
- 4th ventricle
Medulla Oblongata
Gross Anatomy & Key Landmarks
- Extends from pontomedullary junction to foramen magnum (cervicomedullary junction)
- Ventral: pyramids (corticospinal tracts) — pyramidal decussation at caudal end
- Lateral: olives (inferior olivary nucleus) — lateral to pyramids
- Dorsal: gracile tubercle (medial) and cuneate tubercle (lateral) at caudal medulla
- Inferior cerebellar peduncle (ICP) — posterolateral; connects medulla to cerebellum

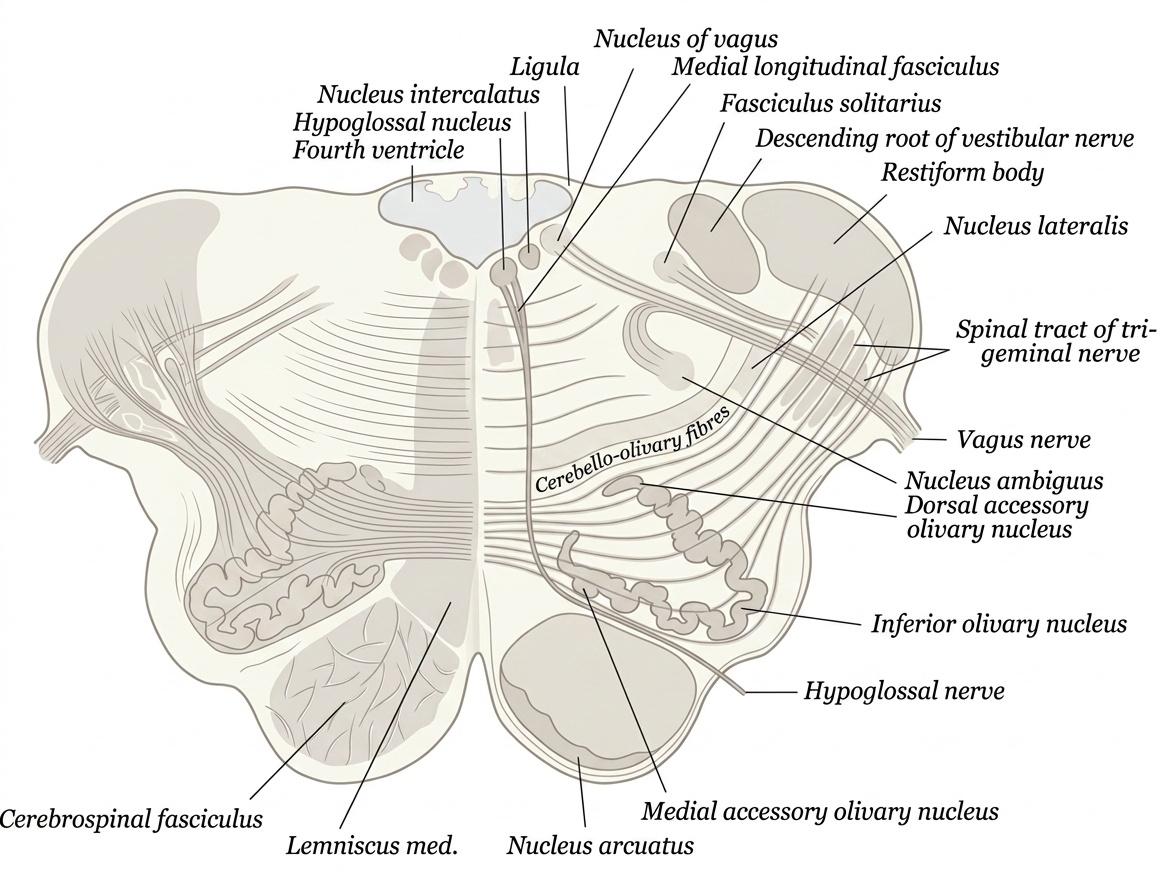

- Open medulla: rostral portion with 4th ventricle; closed medulla: caudal portion with central canal
Key Internal Structures
| Structure | Location | Function | Clinical Correlation |
|---|---|---|---|
| Pyramids | Ventral midline | Corticospinal tracts; decussate at caudal medulla | Medial medullary syndrome → contralateral hemiparesis |
| Inferior olivary nucleus | Lateral to pyramids | Sends climbing fibers to cerebellar cortex → motor learning/error correction | Hypertrophic olivary degeneration → palatal tremor (Guillain-Mollaret triangle) |
| Nucleus gracilis | Dorsal (medial) — caudal medulla | Relay for lower body proprioception/vibration/fine touch | Part of DCML pathway |
| Nucleus cuneatus | Dorsal (lateral) — caudal medulla | Relay for upper body proprioception/vibration/fine touch | Part of DCML pathway |
| Nucleus ambiguus | Lateral tegmentum | Motor to pharynx, larynx, soft palate (via CN IX, X, cranial root of XI) | Wallenberg syndrome → dysphagia, dysarthria, hoarseness |
| Nucleus solitarius (tractus solitarius) | Dorsolateral tegmentum | Taste (CN VII, IX, X); visceral afferents; baroreceptor/chemoreceptor input | Taste loss; autonomic dysfunction |
| Dorsal motor nucleus of vagus | Floor of 4th ventricle (medial to nucleus solitarius) | Parasympathetic to thoracoabdominal viscera | Autonomic dysfunction |
| Hypoglossal nucleus (CN XII) | Paramedian, floor of 4th ventricle | Tongue movement | Medial medullary syndrome → ipsilateral tongue deviation (toward lesion) |
| Area postrema | Floor of 4th ventricle (caudal) | Chemoreceptor trigger zone; outside BBB | Nausea/vomiting center; target of NMOSD (AQP4 antibodies) |
| Respiratory centers | Reticular formation (medulla) | Dorsal & ventral respiratory groups; control breathing rhythm | Bilateral medullary lesions → respiratory arrest; Ondine's curse (loss of automatic breathing, especially in sleep, with preserved voluntary breathing) — bilateral medullary respiratory center lesion (bilateral Wallenberg, lateral medullary tumor, post-surgical); congenital form: PHOX2B mutation (CCHS) |
Clinical Pearl
Area postrema lesion syndrome (intractable nausea/vomiting/hiccups) is a core clinical criterion for NMOSD (neuromyelitis optica spectrum disorder). AQP4 antibodies target aquaporin-4-rich periventricular regions, including the area postrema. This is a frequently tested concept at the intersection of anatomy and neuroimmunology.
Medullary Cross-Section — Rostral (Open) Medulla
Ventral to Dorsal
- Pyramid (corticospinal tract)
- Medial lemniscus (vertical orientation, paramedian)
- Inferior olivary nucleus (lateral to pyramid)
- CN XII nucleus + fibers (exit between pyramid and olive)
- MLF
- Nucleus ambiguus (lateral tegmentum)
- Spinal trigeminal tract and nucleus (lateral)
- Spinothalamic tract (anterolateral to spinal trigeminal)
- Inferior cerebellar peduncle (ICP)
- Vestibular nuclei (dorsolateral)
- Nucleus solitarius + dorsal motor nucleus of vagus
- 4th ventricle (dorsal)
Medullary Cross-Section — Caudal (Closed) Medulla
- Pyramidal decussation (most caudal landmark of medulla)
- Nucleus gracilis (medial) and nucleus cuneatus (lateral)
- Internal arcuate fibers → decussate to form the medial lemniscus (sensory decussation)
- Spinal trigeminal tract and nucleus
- Central canal
Board Pearl
Two decussations in the caudal medulla (know the order): The motor (pyramidal) decussation is caudal to the sensory (internal arcuate/lemniscal) decussation. Both occur at the cervicomedullary junction. A foramen magnum lesion can therefore produce complex crossed motor/sensory patterns depending on which fibers are involved.
Major Brainstem Tracts
| Tract | Function | Midbrain Location | Pons Location | Medulla Location | Decussation |
|---|---|---|---|---|---|
| Corticospinal | Voluntary limb movement | Cerebral peduncle (middle 3/5) | Scattered in basilar pons | Pyramids (ventral) | Pyramidal decussation (caudal medulla) |
| Medial lemniscus | Proprioception, vibration, fine touch | Lateral to red nucleus | Ventral tegmentum (horizontal) | Paramedian (vertical) | Internal arcuate fibers (caudal medulla) |
| Spinothalamic | Pain, temperature, crude touch | Lateral tegmentum | Lateral tegmentum | Lateral tegmentum | Anterior white commissure (spinal cord) |
| MLF | Conjugate horizontal gaze (CN VI → contralateral CN III) | Paramedian dorsal tegmentum | Paramedian dorsal tegmentum | Paramedian dorsal tegmentum | N/A (internuclear connection) |
| Central tegmental tract | Red nucleus → inferior olive (part of Guillain-Mollaret triangle) | Central tegmentum | Central tegmentum | Central tegmentum (to olive) | Ipsilateral (does not cross) |
| Descending sympathetics | Hypothalamus → ciliospinal center (C8-T2) | Lateral tegmentum | Lateral tegmentum | Lateral tegmentum | Ipsilateral (uncrossed) |
| Spinal trigeminal tract | Facial pain/temperature → spinal trigeminal nucleus | Not prominent | Lateral tegmentum | Lateral tegmentum | Crosses after synapse in nucleus |
Board Pearl
Medial lemniscus changes orientation at each level: vertical in medulla (beside pyramids) → horizontal in pons → lateral in midbrain. Spinothalamic tract stays lateral throughout — it never moves. This is why lateral brainstem lesions at any level cause contralateral pain/temperature loss.
Clinical Pearl
The Guillain-Mollaret triangle = dentate nucleus (cerebellum) → red nucleus (midbrain) → inferior olivary nucleus (medulla), connected by the superior cerebellar peduncle (dentatorubral) and central tegmental tract (rubro-olivary). Lesion anywhere in this triangle (commonly midbrain/pontine stroke or hemorrhage) → hypertrophic olivary degeneration → palatal tremor (rhythmic, 1–3 Hz). MRI shows enlargement and T2 hyperintensity of the inferior olive.
Brainstem Stroke Syndromes
Midbrain Syndromes
| Syndrome | Location | Artery | Structures Affected | Clinical Features |
|---|---|---|---|---|
| Weber | Ventral midbrain (peduncle) | PCA paramedian branches | CN III fascicle + cerebral peduncle | Ipsi: CN III palsy (ptosis, "down and out," dilated pupil) Contra: Hemiparesis (face + arm + leg) |
| Benedikt | Midbrain tegmentum | PCA paramedian/circumferential | CN III + red nucleus + cerebral peduncle | Ipsi: CN III palsy Contra: Tremor/chorea/athetosis (red nucleus) + hemiparesis |
| Claude | Midbrain tegmentum (dorsal) | PCA circumferential | CN III + red nucleus/SCP (peduncle spared) | Ipsi: CN III palsy Contra: Cerebellar ataxia (NO hemiparesis) |
| Parinaud (dorsal midbrain) | Dorsal midbrain (pretectum/tectum) | Compression (pineal tumor, hydrocephalus) or PCA perforators | Pretectal area, posterior commissure, superior colliculus | Classic tetrad: upgaze palsy, light-near dissociation, convergence-retraction nystagmus (on upgaze attempt), eyelid retraction (Collier sign). Setting-sun sign in infants with hydrocephalus. Causes: pineal region tumor (germinoma, pinealoma — classic in adolescent boys), aqueductal stenosis with hydrocephalus, midbrain stroke (PCA perforators) |
Board Pearl
Weber = ventral (motor only), Benedikt = tegmentum (motor + involuntary movements), Claude = tegmentum sparing peduncle (cerebellar only). All three share ipsilateral CN III palsy. Think of a gradient from ventral → dorsal: more ventral = more motor; more dorsal = more cerebellar. Parinaud = dorsal midbrain compression → always consider pineal region mass or aqueductal hydrocephalus.
Pontine Syndromes
| Syndrome | Location | Artery | Structures Affected | Clinical Features |
|---|---|---|---|---|
| Millard-Gubler | Ventral caudal pons | Basilar paramedian branches | CN VI + CN VII fascicles + corticospinal tract | Ipsi: CN VI palsy (lateral rectus) + CN VII palsy (LMN facial) Contra: Hemiparesis |
| Foville | Dorsal (tegmental) caudal pons | Basilar paramedian branches | CN VI nucleus + PPRF + CN VII + MLF ± corticospinal | Ipsi: Lateral gaze palsy (PPRF/CN VI nucleus) + CN VII palsy Contra: Hemiparesis (if basis involved) |
| Lateral inferior pontine (AICA) | Lateral caudal pons | AICA | CN VII, VIII + spinothalamic + spinal trigeminal + MCP + sympathetics | Ipsi: Facial palsy, hearing loss, vertigo, ataxia, Horner, facial numbness Contra: Body pain/temperature loss |
| Lateral superior pontine (SCA) | Lateral rostral pons | SCA | SCP + spinothalamic + spinal trigeminal + sympathetics | Ipsi: Severe ataxia, Horner, facial sensory loss Contra: Body pain/temperature loss |
| Locked-in syndrome | Bilateral ventral pons | Basilar artery (thrombosis) | Bilateral corticospinal + corticobulbar tracts (tegmentum spared) | Quadriplegia + anarthria; consciousness and vertical eye movements preserved (only way to communicate) |
Board Pearl
Millard-Gubler vs. Foville: Both involve lower pons. Millard-Gubler = ventral → CN VI and VII fascicles + corticospinal tract. Foville = more dorsal/tegmental → CN VI nucleus/PPRF (conjugate gaze palsy, not just lateral rectus weakness) + CN VII. Key differentiator: gaze palsy (Foville) vs. isolated lateral rectus weakness (Millard-Gubler).
Clinical Pearl
Locked-in syndrome is frequently missed. The patient is fully conscious but quadriplegic and mute. Vertical eye movements and blinking are spared because CN III nuclei (midbrain) and the reticular activating system (tegmentum) are intact. Always test vertical eye movements and eyelid blinking in any "unresponsive" patient with basilar artery territory stroke. EEG shows normal alpha rhythm.
Medullary Syndromes
| Syndrome | Location | Artery | Structures Affected | Clinical Features |
|---|---|---|---|---|
| Wallenberg (lateral medullary) | Lateral medulla | PICA or vertebral artery | Vestibular nuclei, nucleus ambiguus (CN IX/X), spinal trigeminal nucleus/tract, spinothalamic tract, sympathetic fibers, inferior cerebellar peduncle (ICP) |
Ipsi: Vertigo/nystagmus/nausea; dysphagia/dysarthria/hoarseness (nucleus ambiguus); facial pain/temp loss (spinal CN V); Horner syndrome; cerebellar ataxia (ICP) Contra: Body pain/temp loss (spinothalamic) NO motor weakness (pyramids spared) |
| Medial medullary (Dejerine) | Medial medulla | Anterior spinal artery or vertebral artery | Pyramid + medial lemniscus + CN XII |
Ipsi: CN XII palsy (tongue deviates toward lesion) Contra: Hemiparesis (arm/leg, spares face) + proprioception/vibration loss |
Board Pearl
Wallenberg = most common brainstem stroke syndrome. Most commonly from vertebral artery occlusion (not PICA directly). Cardinal features: crossed sensory loss (ipsilateral face, contralateral body for pain/temperature) + no motor weakness. Often initially misdiagnosed as peripheral vertigo or vestibular neuritis. Remember the "5 D's": Dysphagia, Dysarthria, Dysphonia, Dizziness, Dysmetria (diplopia uncommon and only from skew deviation — not a CN palsy in Wallenberg).
Master Comparison Table — All Brainstem Syndromes
| Syndrome | Level | Medial/Lateral | Artery | Key CN Deficit | Motor | Distinguishing Feature |
|---|---|---|---|---|---|---|
| Weber | Midbrain | Medial | PCA | CN III (ipsi) | Contra hemiparesis | CN III + hemiparesis only |
| Benedikt | Midbrain | Medial + tegmentum | PCA | CN III (ipsi) | Contra hemiparesis + tremor | Red nucleus involvement → involuntary movements |
| Claude | Midbrain | Tegmentum only | PCA | CN III (ipsi) | Contra ataxia, NO paresis | Cerebellar signs without weakness |
| Millard-Gubler | Pons (caudal) | Medial (ventral) | Basilar | CN VI + VII (ipsi) | Contra hemiparesis | CN fascicle involvement, no gaze palsy |
| Foville | Pons (caudal) | Medial (tegmental) | Basilar | CN VI nuc + VII (ipsi) | Contra hemiparesis (±) | Conjugate gaze palsy (PPRF/CN VI nucleus) |
| AICA syndrome | Pons (caudal) | Lateral | AICA | CN VII + VIII (ipsi) | Ipsi ataxia, no paresis | Hearing loss + facial palsy + vertigo |
| Locked-in | Pons (bilateral) | Bilateral ventral | Basilar | Bilateral corticobulbar interruption (CN nuclei intact in tegmentum) | Quadriplegia | Consciousness preserved; vertical gaze intact |
| Wallenberg | Medulla | Lateral | PICA/vertebral | CN IX, X (ipsi) | NO weakness | Crossed sensory loss + dysphagia |
| Dejerine (medial medullary) | Medulla | Medial | ASA/vertebral | CN XII (ipsi) | Contra hemiparesis | Tongue deviates toward lesion |
Brainstem Reflexes & Clinical Testing
Reflex Arc Summary
| Reflex | Afferent | Center | Efferent | Normal Response | Tests Integrity Of |
|---|---|---|---|---|---|
| Pupillary light reflex | CN II (optic) | Pretectal area (midbrain) | CN III (Edinger-Westphal → ciliary ganglion) | Bilateral pupillary constriction (direct + consensual) | Midbrain |
| Corneal reflex | CN V1 (ophthalmic) | Spinal trigeminal nucleus (pons/medulla) | CN VII (bilateral orbicularis oculi) | Bilateral eye blink | Pons (+ medulla) |
| Oculocephalic (doll's eyes) | CN VIII (vestibular) | Vestibular nuclei + MLF (pons/midbrain) | CN III, IV, VI | Eyes move opposite to head turning (conjugate deviation) | Pons-midbrain (pontomesencephalic) |
| Oculovestibular (cold calorics) | CN VIII (vestibular) | Vestibular nuclei + MLF | CN III, VI | Awake: nystagmus fast phase away from cold water Comatose (intact brainstem): tonic deviation toward cold water Brain death: no response |
Pons-midbrain |
| Gag reflex | CN IX (glossopharyngeal) | Nucleus solitarius + nucleus ambiguus (medulla) | CN X (vagus) | Pharyngeal contraction, elevation of soft palate | Medulla |
| Cough reflex | CN X (vagus — laryngeal/tracheal mucosa) | Nucleus solitarius (medulla) | CN X (recurrent laryngeal + respiratory muscles) | Cough with tracheal suctioning | Medulla |
Brain Death Testing — Brainstem Reflex Assessment
- Brain death = irreversible cessation of all brain function, including the brainstem
- All of the following brainstem reflexes must be ABSENT:
- Pupillary light reflex (pupils fixed, mid-dilated or dilated)
- Corneal reflex
- Oculocephalic reflex (doll's eyes — no eye movement with head turning)
- Oculovestibular reflex (cold calorics — no eye deviation)
- Gag reflex
- Cough reflex (with tracheal suctioning)
- Apnea test: No respiratory drive despite PaCO2 ≥60 mmHg AND ≥20 mmHg above baseline (2023 AAN consensus, Greer et al)
- Confounders that must be excluded: Hypothermia (<36°C / 96.8°F), drug intoxication/sedation, severe metabolic derangement, neuromuscular blockade
Board Pearl
Brainstem reflexes are tested in a rostral-to-caudal sequence (pupillary → corneal → oculovestibular → gag → cough → apnea). This sequence mirrors the anatomic levels: midbrain → pons → medulla. In brain death, spinal reflexes may still be present (e.g., deep tendon reflexes, triple flexion) — this does not exclude brain death. Boards test this distinction frequently.
Clinical Pearl
Cold caloric mnemonic for the awake patient: COWS — Cold Opposite, Warm Same (fast phase direction of nystagmus). In a comatose patient with intact brainstem, you lose the fast (cortical) phase and see only tonic deviation toward cold water. In brain death, there is no response at all. These distinctions are commonly tested.
Key Board-Yield Localizations
Internuclear Ophthalmoplegia (INO)
- Lesion: MLF (medial longitudinal fasciculus) — between CN VI nucleus (pons) and contralateral CN III nucleus (midbrain)
- Clinical:
- Impaired adduction of the ipsilateral eye on attempted lateral gaze
- Abduction nystagmus of the contralateral (abducting) eye
- Convergence typically preserved (different pathway)
- Named for the side of the adduction deficit — e.g., "left INO" = left eye cannot adduct
- Etiology by age:
- Young patient (bilateral INO) → multiple sclerosis (most common cause)
- Older patient (unilateral INO) → brainstem stroke
One-and-a-Half Syndrome
- Lesion: Ipsilateral PPRF (or CN VI nucleus) + ipsilateral MLF
- Clinical:
- Ipsilateral complete conjugate gaze palsy (the "one") — cannot look toward the side of the lesion
- Ipsilateral INO (the "half") — cannot adduct ipsilateral eye on contralateral gaze
- Only remaining horizontal movement: abduction of the contralateral eye
- Etiology: Pontine stroke, MS, pontine hemorrhage, tumor
- If CN VII is also involved (facial colliculus nearby) → "eight-and-a-half" syndrome (one-and-a-half + ipsilateral LMN facial palsy)
Top of the Basilar Syndrome
- Location: Rostral basilar territory — bilateral midbrain + thalami + medial temporal lobes + occipital lobes
- Etiology: Cardiogenic embolism (most common); also atherosclerosis, vertebrobasilar dissection
- Classic findings:
- Somnolence/fluctuating consciousness or coma (thalamic/reticular involvement)
- Vertical gaze palsy (riMLF, posterior commissure)
- Pupil abnormalities — mid-position, light-near dissociation, anisocoria
- Visual hallucinations (peduncular hallucinosis)
- Behavioral changes — agitation, amnesia, confusion
- Bilateral occipital infarcts → cortical blindness (Anton syndrome with denial)
- Key teaching: Sudden somnolence + vertical gaze palsy + visual symptoms → think top-of-basilar. CTA/MRA of the posterior circulation is mandatory; consider emergent thrombectomy.
Nuclear CN III Palsy
- Location: CN III nuclear complex (midbrain, ventral to aqueduct at superior colliculus level)
- Classic features:
- Bilateral ptosis — central caudal nucleus supplies levator palpebrae bilaterally
- Contralateral superior rectus weakness — SR subnucleus axons cross before exiting
- Ipsilateral weakness of remaining CN III muscles (MR, IR, IO)
- Ipsilateral mydriasis (Edinger-Westphal nuclei are paired, not midline)
- Differentiates from fascicular/peripheral CN III palsy (which is purely unilateral)
- Etiology: Small midbrain infarct (paramedian perforators), demyelination, neoplasm
Peduncular Hallucinosis
- Definition: Vivid, formed visual hallucinations (people, animals, complex scenes) — often colorful and life-like
- Patient: Typically insight preserved (knows hallucinations are not real) — contrasts sharply with primary psychosis
- Location: Midbrain tegmentum, thalamus, or rostral brainstem
- Mechanism: Disruption of ARAS (ascending reticular activating system) and thalamocortical pathways → release phenomenon
- Associations: Top-of-basilar stroke, Lewy body disease, midbrain tumor, midbrain infarct
- Related "release" hallucinations: Charles Bonnet syndrome (formed visual hallucinations in setting of visual loss, insight preserved) and Anton syndrome (cortical blindness with denial of blindness)
Vertical Gaze Palsy — Localization
| Finding | Lesion | Key Teaching |
|---|---|---|
| Upgaze palsy | riMLF (rostral interstitial nucleus of MLF) + posterior commissure | Classic Parinaud (dorsal midbrain) syndrome |
| Downgaze palsy | Bilateral riMLF | Rare in isolation; usually combined with upgaze palsy |
| Vertical gaze-holding / torsion deficits | INC (interstitial nucleus of Cajal) | Loss of vertical gaze holding; ocular tilt reaction |
| Combined vertical + horizontal gaze palsy in coma | Mesodiencephalic junction | Suggests top-of-basilar or rostral brainstem lesion |
| Selective downgaze palsy | Think progressive supranuclear palsy (PSP) | Supranuclear — doll's eyes (oculocephalic) intact → confirms it's above the nuclear level |
Ocular Bobbing
- Definition: Rapid, conjugate, downward eye movement followed by slow return to midposition
- Localizes to: Bilateral pontine dysfunction (typically large pontine hemorrhage or infarction)
- Mechanism: Destruction of horizontal gaze centers (PPRF) with preserved vertical gaze centers (midbrain)
- Significance: Poor prognosis; usually seen in comatose patients
- Variants (know all four — high-yield trap):
- Bobbing = fast down, slow up → pontine lesion
- Dipping = slow down, fast up → anoxic/diffuse encephalopathy
- Reverse bobbing = fast up, slow down → metabolic
- Reverse dipping = slow up, fast down → rare
Central Pontine Myelinolysis (Osmotic Demyelination Syndrome)
- Location: Central basis pontis — non-inflammatory demyelination
- Cause: Overly rapid correction of hyponatremia (current consensus: ≤8 mEq/L per 24 h, ≤6 in high-risk patients per 2023 expert guidance)
- Risk factors: Alcoholism, malnutrition, liver disease, hypokalemia, chronic hyponatremia
- Clinical features:
- Classically presents 2–6 days after sodium correction
- Quadriparesis (corticospinal tracts)
- Pseudobulbar palsy (dysarthria, dysphagia)
- Locked-in syndrome (severe cases)
- Mental status changes; may progress to coma
- MRI: T2/FLAIR hyperintensity in central pons with classic "trident" or "bat-wing" shape; DWI may show early restricted diffusion
- Extrapontine myelinolysis: Can affect thalamus, basal ganglia, cerebellum; presents with movement disorders, cognitive changes
Board Pearl
Boards love this sequence: Bilateral INO in a young patient → think MS. One-and-a-half syndrome → pontine lesion affecting PPRF + MLF. Ocular bobbing → bilateral pontine destruction. Quadriparesis developing days after sodium correction → central pontine myelinolysis. Safe correction: ≤8 mEq/L per 24 h (≤6 if high-risk: chronic hyponatremia, alcoholism, malnutrition, hypokalemia, liver disease).
Additional High-Yield Eye Movement Localizations
| Finding | Lesion Location | Key Teaching Point |
|---|---|---|
| Eyes deviate toward lesion | Frontal cortex (FEF destruction) | "Eyes look at the lesion" in cortical stroke; away from hemiplegic side |
| Eyes deviate away from lesion | Pons (PPRF destruction) | "Eyes look at the hemiplegia" in pontine stroke |
| Wrong-way eyes | Thalamic hemorrhage | Eyes deviate away from the lesion (contralateral) — opposite of cortical rule |
| Skew deviation | Brainstem/cerebellum (vestibular pathways) | Vertical misalignment; alternating cover test; can mimic CN IV palsy |
| Downward gaze deviation | Thalamic hemorrhage ("peering at the nose") | May accompany wrong-way horizontal deviation |
| Opsoclonus | Cerebellum (fastigial nucleus) / brainstem | Chaotic saccades in all directions; think paraneoplastic (anti-Ri, anti-ANNA-2) or post-infectious |
Board Pearl
Eye deviation rules: Cortical lesion → eyes look toward the lesion (away from hemiparesis). Pontine lesion → eyes look toward the hemiparesis (away from lesion). Thalamic hemorrhage → wrong-way eyes + downward gaze. Seizure (irritative focus) → eyes deviate away from the focus (opposite of a destructive cortical lesion).
Brainstem Localization Quick-Reference
| Clinical Scenario | Localization | Mechanism / Etiology |
|---|---|---|
| Ipsilateral CN deficit + contralateral long-tract signs | Brainstem (any level) | Stroke, tumor, demyelination |
| Crossed sensory loss (ipsi face, contra body) + NO weakness | Lateral medulla (Wallenberg) | PICA/vertebral artery stroke |
| Bilateral INO in young patient | Bilateral MLF (pons/midbrain) | MS (most common) |
| Ipsilateral gaze palsy + INO | Ipsilateral PPRF + MLF (pons) | One-and-a-half syndrome |
| Quadriplegia + anarthria + preserved consciousness | Bilateral ventral pons | Basilar artery thrombosis (locked-in) |
| Upgaze palsy + light-near dissociation | Dorsal midbrain (pretectum) | Parinaud syndrome (pineal tumor, hydrocephalus) |
| Palatal tremor (rhythmic, 1–3 Hz) | Guillain-Mollaret triangle | Hypertrophic olivary degeneration |
| CN VI palsy with raised intracranial pressure (no pontine lesion) | False localizing sign | Longest subarachnoid course → stretched by downward displacement |
| Intractable nausea/vomiting/hiccups | Area postrema (dorsal medulla) | NMOSD (AQP4 antibodies) |
Clinical Pearl
The "crossed findings" rule is the single most important brainstem localization principle: Ipsilateral cranial nerve deficit + contralateral motor or sensory deficit = brainstem lesion. The specific cranial nerve involved tells you the level: CN III/IV = midbrain, CN V–VIII = pons, CN IX–XII = medulla. The medial vs. lateral distinction (4 M's vs. 4 S's) tells you the vascular territory.
References
- Blumenfeld H. Neuroanatomy through Clinical Cases. 3rd ed. Sinauer Associates; 2021.
- Brazis PW, Masdeu JC, Biller J. Localization in Clinical Neurology. 8th ed. Wolters Kluwer; 2022.
- Netter FH. Atlas of Human Anatomy. 8th ed. Elsevier; 2022.
- Campbell WW, Barohn RJ. DeJong's The Neurologic Examination. 8th ed. Wolters Kluwer; 2020.
- Ropper AH, Samuels MA, Klein JP, Prasad S. Adams and Victor's Principles of Neurology. 12th ed. McGraw-Hill; 2023.
- Gates P. The rule of 4 of the brainstem: a simplified method for understanding brainstem anatomy and brainstem vascular syndromes for the non-neurologist. Intern Med J. 2005;35(4):263–266.
- Greer DM, Kirschen MP, Lewis A, et al. Pediatric and Adult Brain Death/Death by Neurologic Criteria Consensus Guideline. Neurology. 2023;101(24):1112–1132.
- Singh TD, et al. Central pontine myelinolysis and osmotic demyelination syndrome. JAMA Neurol. 2024;81(1):87–96.
Continue reading — sign in
The full note has more clinical pearls, tables, and board-focused tips. Free account, no fee.
